SPS-90

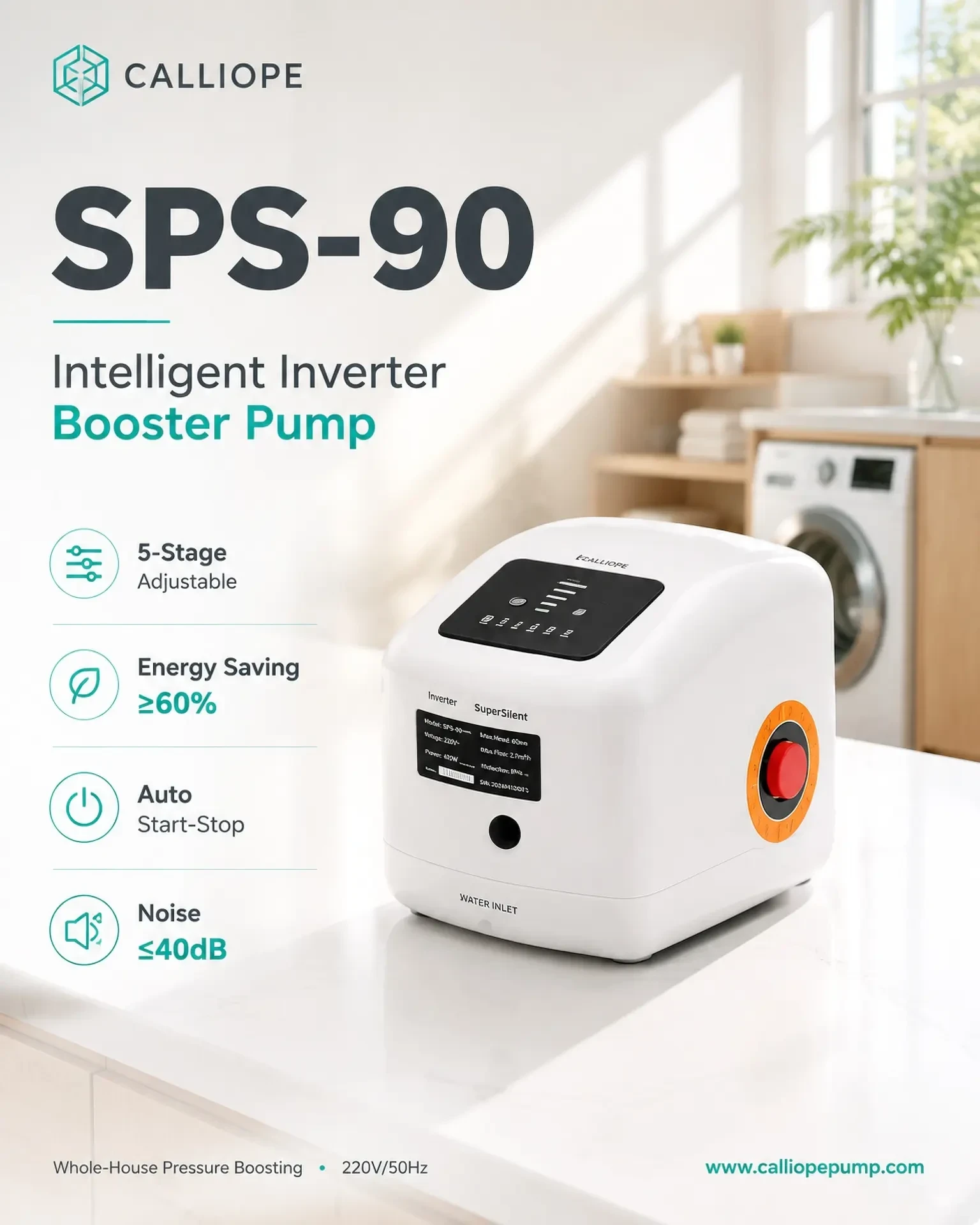

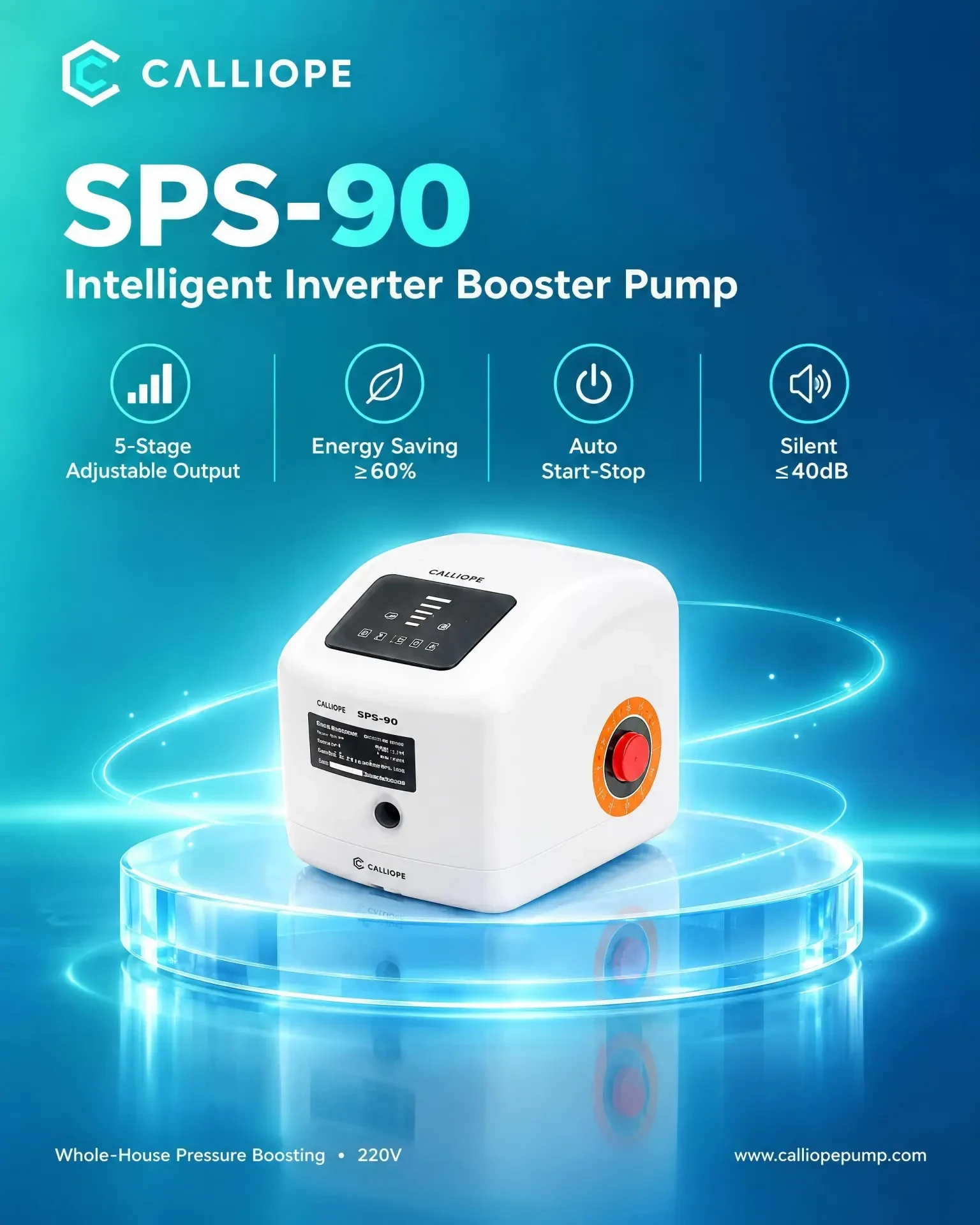

Name: SPS-90 Intelligent Inverter Booster Pump
Brand: Calliope Pumps
SKU: SPS-90

Five-stage permanent magnet inverter booster that holds a steady outlet pressure for whole-house and villa water supply.

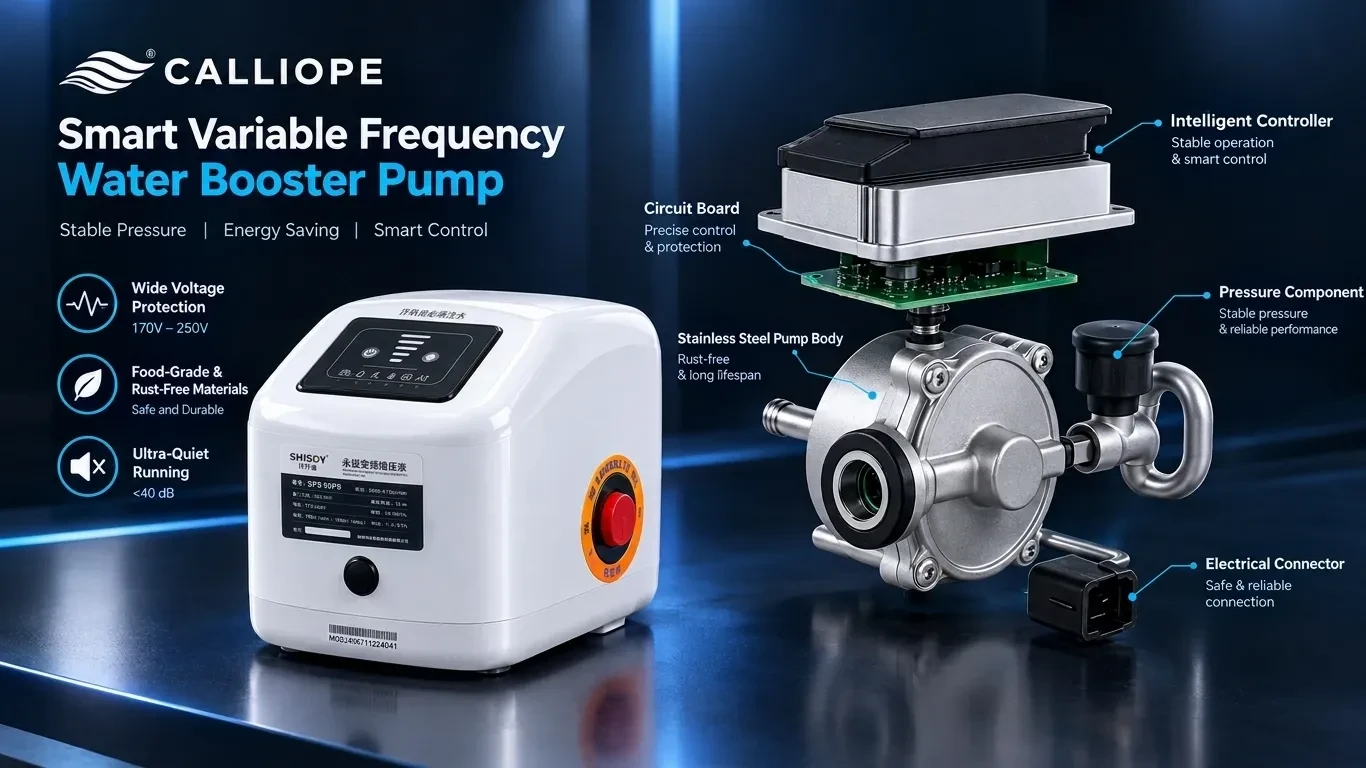

The SPS-90 uses permanent magnet frequency conversion with five selectable power stages, so one model covers the duty of several fixed speed sizes. Outlet pressure stays constant as taps, showers and appliances open and close, and the ceramic shaft and bearing keep running noise low. Intelligent diagnosis reports alarms early and the compact body fits into a utility space or outdoor cabinet.

2026 catalog · SPS SERIES

SPS-90Intelligent Inverter Booster Pump

Five-stage intelligent booster for apartment and villa supply

Rated power: 0.18 - 0.38 kW (0.24 - 0.51 HP)
Maximum flow: 3.6 m³/h (15.9 GPM)
Maximum head: 32 m (105 ft)
Power supply: 170 - 270 V, 50/60 Hz
Catalog page: Page 07

Series modelsSPS-90ICP100F ICP106F SCS90 ICP100A ICP102-50

Request a Quote for This Model Chat on WhatsApp

Compare the full series Selection guide

Product view

Constant PressureHigh EfficiencyLong Service LifeAutomaticWide VoltageUltra-Silent

Key benefits

SPS-90 Intelligent Inverter Booster Pump · data from the 2026 catalog and the model page.

Smart size, higher efficiency and bigger flow with super quiet operation
Intelligent diagnosis and alarm with constant pressure and failure protection
Permanent magnet and frequency conversion technology for energy saving operation
Automatic voltage adjustment and five stages to suit actual demand
Advanced ceramic shaft and bearing built for a longer service life

The specification confirmed for an order is the one stated in the order confirmation.

Technical specifications

Same fields, units and order for every model. Fields that are not published in the catalog are omitted.

Electrical

Rated power: 0.18 - 0.38 kW (0.24 - 0.51 HP)
Power stages: 5 adjustable power stages
Power supply: 170 - 270 V, 50/60 Hz
Rated speed: 5000 rpm

Hydraulic

Maximum flow: 3.6 m³/h (15.9 GPM)
Maximum head: 32 m (105 ft)
Maximum working pressure: 10 bar (145 psi)
Maximum suction lift: 7 m (23 ft)
Inlet: 3/4 in (19 mm)
Outlet: 3/4 in (19 mm) (same as inlet)

Construction and environment

Pump body and wetted parts: Ceramic shaft and bearing
Motor type: Permanent magnet motor with integrated variable frequency drive
Liquid temperature range: 5 - 70 °C
Ambient temperature range: 5 - 40 °C
Pumped liquid: Thin, clean, non-aggressive liquid

Weights and packing

Gross weight: 5.4 kg
Packing: Carton

SPS-90 power stage data

Every value is taken from the 2026 catalog table for this model.

Stage	Power (kW)	Power (HP)	Current (A)	Max flow (L/min)	Max head (m)	Suction (m)	Speed (rpm)
Stage-1	0.18	0.25	1.45	47 L/min (2.8 m³/h)	17 m (56 ft)	7 m (23 ft)	5000
Stage-2	0.23	0.3	1.8	51 L/min (3.1 m³/h)	21 m (69 ft)	7 m (23 ft)	5000
Stage-3	0.28	0.38	2.0	55 L/min (3.3 m³/h)	25 m (82 ft)	7 m (23 ft)	5000
Stage-4	0.33	0.45	2.4	58 L/min (3.5 m³/h)	27 m (89 ft)	7 m (23 ft)	5000
Stage-5	0.38	0.5	2.7	60 L/min (3.6 m³/h)	32 m (105 ft)	7 m (23 ft)	5000

Specification values are taken from the 2026 catalog tables for this model.

Performance curve

Head against capacity as published in the catalog, with metric and imperial axes.

Performance curve · SPS-90Head against capacity, metric and imperial axes

Stage-3Stage-5

Dimension data

All dimensions in millimetres unless stated otherwise. The dimension drawing with reference letters is printed on catalog page 07.

Model	Dimensions	Weight
SPS-90	Body size (a × d × g × h) 250 × 190 × 68 × 196 mm

Applications

whole-house boosting, rooftop tank and water tower supply, and light commercial duties.

Whole-House Boosting
Villa & Multi-Storey Homes
Rooftop Tank & Water Tower Boosting

Water use notes Match boosting level to a model

Installation notes

Points that apply to this model, from the catalog and the site installation guidance.

Install the pump in a dry, ventilated position within the ambient range listed above, and follow the installation drawing on catalog page 07.

Liquid temperature range: 5 - 70 °C
Ambient temperature range: 5 - 40 °C
Pumped liquid: Thin, clean, non-aggressive liquid

Packaging and shipping data

Packing information published for this model.

Packing: Carton
Gross weight: 5.4 kg

Packing data is taken from the catalog. Loading quantity per container is confirmed per order.

Ordering information

Ordering information for the 2026 range.

MOQ and packaging: Minimum order quantity (MOQ): 50 units in kraft-paper cartons, with your brand label available. 300 units in color boxes, with the packaging layout designed entirely to your requirements.
Lead time: Approximately 35 days.
Power supply: All models are single-phase.
OEM / ODM: Supported: custom voltage and frequency builds, own brand nameplate and rating labels, and adapted carton and shipping marks.
Connection: 3/4 in (19 mm)

Warranty: 2 yearsWarranty and After-sales

Voltage and market variants

This model is supplied on 170 - 270 V, 50/60 Hz for standard single-phase range for most markets. Used across the permanent magnet inverter and multistage ranges.

170 - 260 V / 170 - 270 V, 50/60 Hz· Standard single-phase range for most marketsThis model
110 / 115 / 127 V, 60 Hz· Americas and other 60 Hz markets
220 / 230 / 240 V, 50 Hz· Europe, Middle East, Africa and Asia
DC 24 V· Off-grid, battery and solar assisted installations

Other voltages are arranged on request. See the selection guide for the full list.

Downloads

PDF files are generated from the catalog data published on this page.

Datasheet
Model, key specifications, power stage data and packing details generated from the catalog data on this page.
Performance Curve
Head and flow curve with metric and imperial axes, plus the Q-H grid data.
Dimension Data
Dimension table for each model in the range, in millimetres and inches.

Related models

Models from the same series and models that share the same boosting level.

In Calliope standard laboratory tests, users saved approximately 40% on electricity costs.

Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.

Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.
