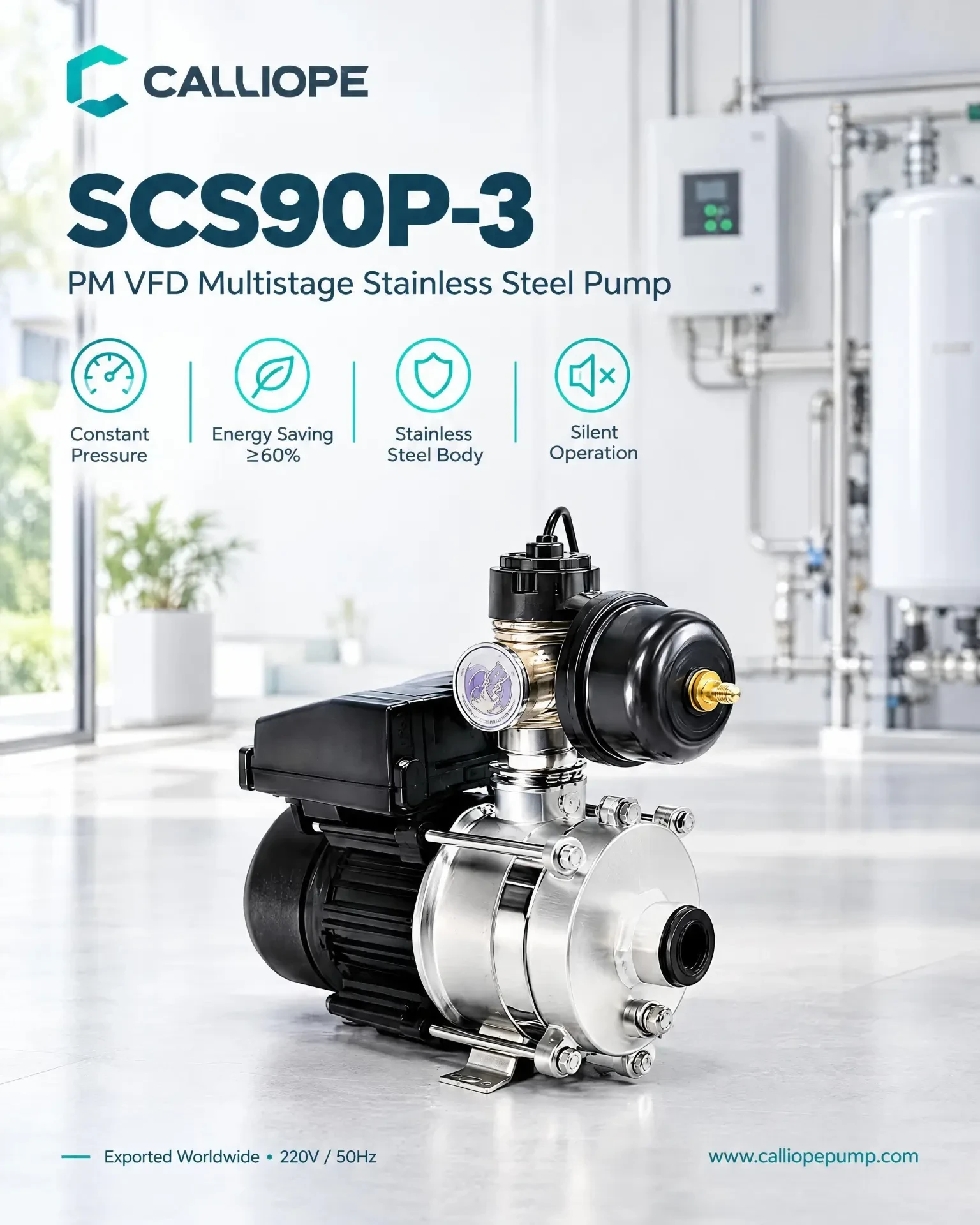

Multistage stainless steel pump with permanent magnet VFD control for steady household pressure.
The SCS90P-3 is driven by a permanent magnet variable frequency controller with five power levels, keeping pressure steady as demand changes. The water cooled motor and controller run quietly without a cooling fan, smart fault diagnosis reports abnormal conditions early, and the outlet can add up to 3.8 bar above inlet pressure.
2026 catalog · SCS90P SERIES
Multistage stainless pump with integrated VFD control
SCS90P-3 PM VFD Multistage Stainless Steel Pump · data from the 2026 catalog and the model page.
The specification confirmed for an order is the one stated in the order confirmation.
Same fields, units and order for every model. Fields that are not published in the catalog are omitted.
Electrical
Hydraulic
Construction and environment
Weights and packing
SCS90P-3 power stage data
Every value is taken from the 2026 catalog table for this model.
| Stage | Power (kW) | Power (HP) | Current (A) | Max flow (L/min) | Max head (m) | Suction (m) |
|---|---|---|---|---|---|---|
| Power 1 | 0.24 | 0.75 | 5.1 | 75 L/min (4.5 m³/h) | 25 m (82 ft) | 7 m (23 ft) |
| Power 2 | 0.3 | 0.75 | 5.1 | 75 L/min (4.5 m³/h) | 30 m (98 ft) | 7 m (23 ft) |
| Power 3 | 0.38 | 0.75 | 5.1 | 75 L/min (4.5 m³/h) | 35 m (115 ft) | 7 m (23 ft) |
| Power 4 | 0.43 | 0.75 | 5.1 | 75 L/min (4.5 m³/h) | 40 m (131 ft) | 7 m (23 ft) |
| Power 5 | 0.47 | 0.75 | 5.1 | 75 L/min (4.5 m³/h) | 45 m (148 ft) | 7 m (23 ft) |
Specification values are taken from the 2026 catalog tables for this model.
Head against capacity as published in the catalog, with metric and imperial axes.
Q-H grid data
| Stage | 25 m³/h (417 L/min) | 25 m³/h (417 L/min) | 25 m³/h (417 L/min) | 25 m³/h (417 L/min) | 25 m³/h (417 L/min) |
|---|---|---|---|---|---|
| Power 3 (m) | 35 m (115 ft) | 35 m (115 ft) | 35 m (115 ft) | 35 m (115 ft) | 35 m (115 ft) |
| Power 5 (m) | 45 m (148 ft) | 45 m (148 ft) | 45 m (148 ft) | 45 m (148 ft) | 42 m (138 ft) |
All dimensions in millimetres unless stated otherwise. Dimension references Overall length, Overall height, Base width, Port offset are printed on catalog page 13.
| Model | Dimensions | Weight |
|---|---|---|
| SCS90P-3 |
| 6.4 kg |
rooftop tank and water tower boosting, villa and multi-storey supply, plant room boosting and closed-loop circuits.
Points that apply to this model, from the catalog and the site installation guidance.
Packing information published for this model.
Packing data is taken from the catalog. Loading quantity per container is confirmed per order.
Ordering information for the 2026 range.
Warranty: 2 yearsWarranty and After-sales
Voltage and market variants
This model is supplied on 170 - 260 V, 50/60 Hz for standard single-phase range for most markets. Used across the permanent magnet inverter and multistage ranges.
Other voltages are arranged on request. See the selection guide for the full list.
PDF files are generated from the catalog data published on this page.
Datasheet
Model, key specifications, power stage data and packing details generated from the catalog data on this page.
Performance Curve
Head and flow curve with metric and imperial axes, plus the Q-H grid data.
Dimension Data
Dimension table for each model in the range, in millimetres and inches.
Models from the same series and models that share the same boosting level.
SPS-90Same boosting level · Level 1View details
SPS90-3Same boosting level · Level 1View details
ICP100ASame boosting level · Level 1View details
ICP100FSame boosting level · Level 1View details
PYS-ESame series · Multistage PM VFD Booster PumpsView details
In Calliope standard laboratory tests, users saved approximately 40% on electricity costs.
Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.
Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.
Working on a SCS90P-3 project? Send the duty point, market and volume and the export team will confirm the configuration.
