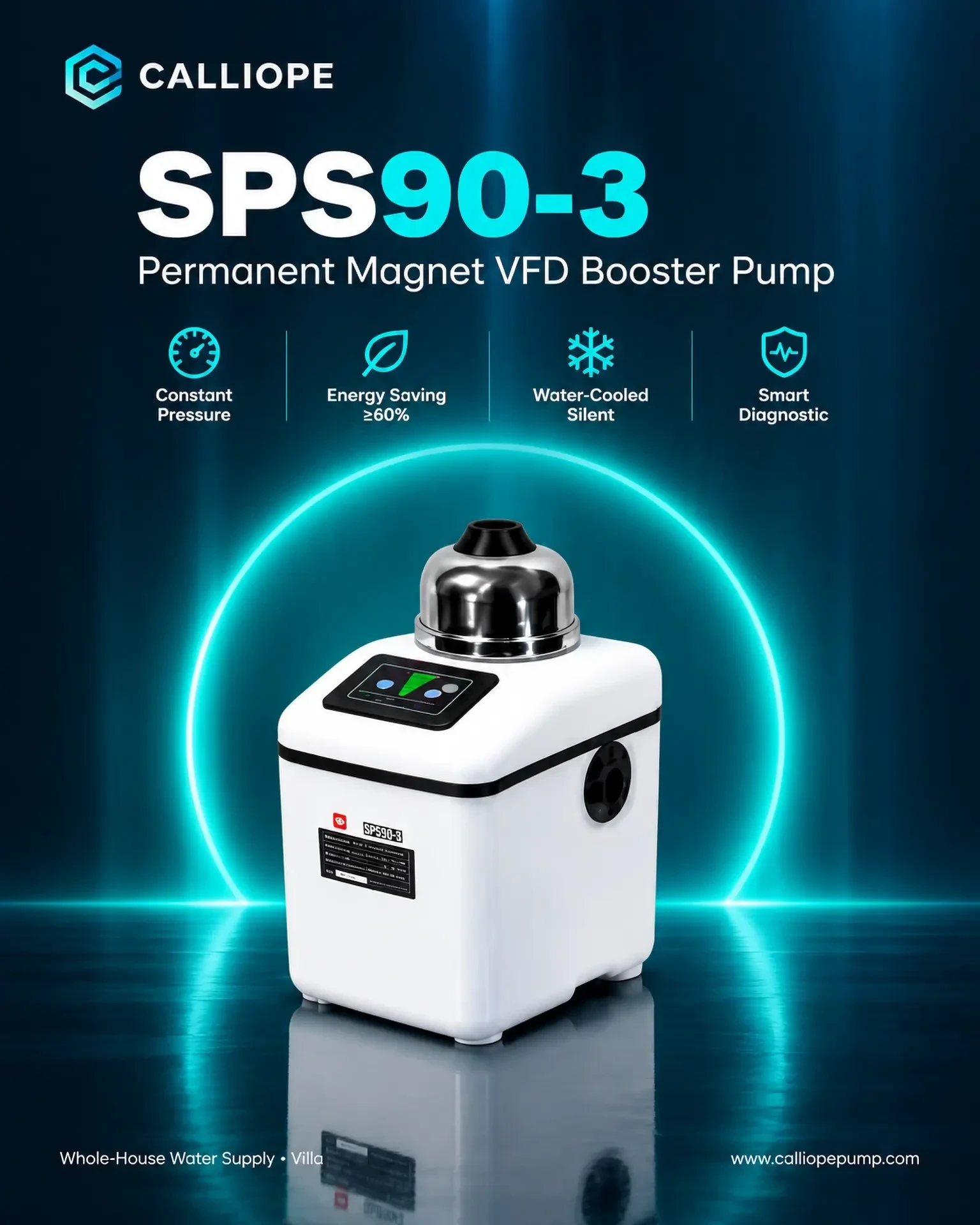

Wide voltage permanent magnet VFD booster for steady pressure from rooftop tanks and mains supply lines.
The SPS90-3 runs across a wide voltage range with a water cooled motor and controller, keeping noise low and motor efficiency high. A stainless steel precision cast body with ceramic shaft and bearing protects the water path, while the two button interface and smart fault diagnosis keep operation simple for household boosting and light transfer duty.
2026 catalog · SPS90 SERIES
Wide voltage booster for steady pressure from tanks and mains
SPS90-3 Permanent Magnet VFD Booster Pump · data from the 2026 catalog and the model page.
The specification confirmed for an order is the one stated in the order confirmation.
Same fields, units and order for every model. Fields that are not published in the catalog are omitted.
Electrical
Hydraulic
Construction and environment
Weights and packing
SPS90-3 power stage data
Every value is taken from the 2026 catalog table for this model.
| Stage | Power (kW) | Power (HP) | Current (A) | Max flow (L/min) | Max head (m) | Suction (m) |
|---|---|---|---|---|---|---|
| Power 1 | 0.27 | 0.8 | 5.5 | 70 L/min (4.2 m³/h) | 25 m (82 ft) | 7 m (23 ft) |
| Power 2 | 0.33 | 0.8 | 5.5 | 70 L/min (4.2 m³/h) | 30 m (98 ft) | 7 m (23 ft) |
| Power 3 | 0.41 | 0.8 | 5.5 | 70 L/min (4.2 m³/h) | 35 m (115 ft) | 7 m (23 ft) |
| Power 4 | 0.49 | 0.8 | 5.5 | 70 L/min (4.2 m³/h) | 40 m (131 ft) | 7 m (23 ft) |
| Power 5 | 0.58 | 0.8 | 5.5 | 70 L/min (4.2 m³/h) | 45 m (148 ft) | 7 m (23 ft) |
Specification values are taken from the 2026 catalog tables for this model.
Head against capacity as published in the catalog, with metric and imperial axes.
All dimensions in millimetres unless stated otherwise. Dimension references Outlet, Inlet, Body width, Body height are printed on catalog page 10.
| Model | Dimensions | Weight |
|---|---|---|
| SPS90-3 |
| 9.5 kg |
rooftop tank and water tower boosting, villa and multi-storey supply, plant room boosting and closed-loop circuits.
Points that apply to this model, from the catalog and the site installation guidance.
Packing information published for this model.
Packing data is taken from the catalog. Loading quantity per container is confirmed per order.
Ordering information for the 2026 range.
Warranty: 2 yearsWarranty and After-sales
Voltage and market variants
This model is supplied on 170 - 260 V, 50/60 Hz for standard single-phase range for most markets. Used across the permanent magnet inverter and multistage ranges.
Other voltages are arranged on request. See the selection guide for the full list.
PDF files are generated from the catalog data published on this page.
Datasheet
Model, key specifications, power stage data and packing details generated from the catalog data on this page.
Performance Curve
Head and flow curve with metric and imperial axes, plus the Q-H grid data.
Dimension Data
Dimension table for each model in the range, in millimetres and inches.
Models from the same series and models that share the same boosting level.
SPS-90Same boosting level · Level 1View details
SCS90P-3Same boosting level · Level 1View details
ICP100ASame boosting level · Level 1View details
ICP100FSame boosting level · Level 1View details
PYS-ESame series · Multistage PM VFD Booster PumpsView details
In Calliope standard laboratory tests, users saved approximately 40% on electricity costs.
Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.
Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.
