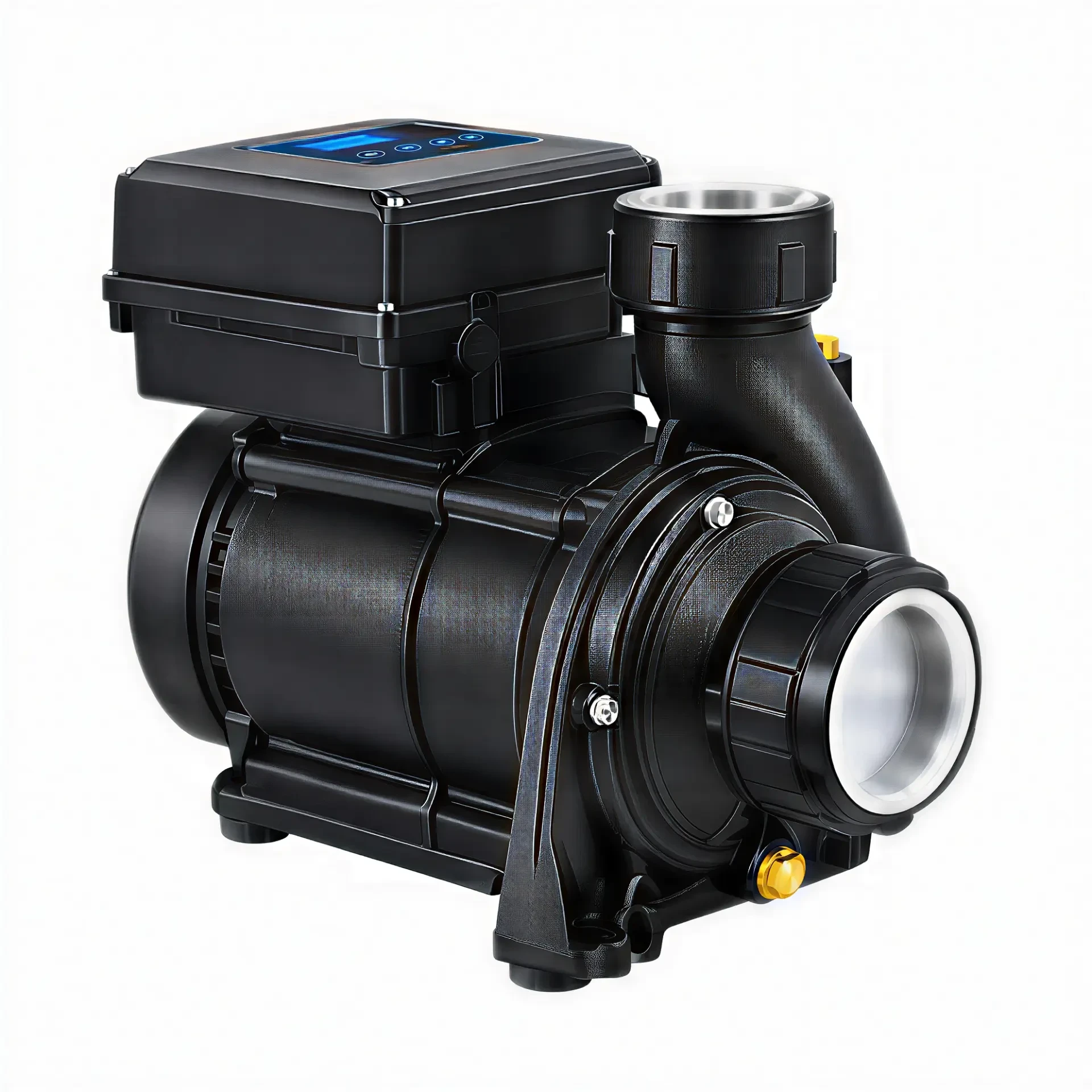

Intelligent centrifugal pump with five power stages, wide voltage tolerance and suction lift intake.
The ICP100A combines a permanent magnet motor with intelligent centrifugal hydraulics and five power levels, giving higher flow for household boosting and tank supply. Wide voltage and frequency tolerance keeps performance stable on uneven supply, and the two button interface with smart diagnosis reduces the effort of day to day operation.
2026 catalog · ICP SERIES
Intelligent centrifugal pump for home and light building supply
ICP100A Intelligent Centrifugal Pump · data from the 2026 catalog and the model page.
The specification confirmed for an order is the one stated in the order confirmation.
Same fields, units and order for every model. Fields that are not published in the catalog are omitted.
Electrical
Hydraulic
Construction and environment
Weights and packing
ICP100A power stage data
Every value is taken from the 2026 catalog table for this model.
| Stage | Power (kW) | Power (HP) | Current (A) | Max flow (L/min) | Max head (m) | Suction (m) |
|---|---|---|---|---|---|---|
| Power-1 | 0.3 | 0.4 | 2.2 | 75 L/min (4.5 m³/h) | 22 m (72 ft) | 7 m (23 ft) |
| Power-2 | 0.4 | 0.55 | 2.8 | 83 L/min (5 m³/h) | 27 m (89 ft) | 7 m (23 ft) |
| Power-3 | 0.5 | 0.66 | 3.5 | 92 L/min (5.5 m³/h) | 31 m (102 ft) | 7 m (23 ft) |
| Power-4 | 0.6 | 0.8 | 4.2 | 95 L/min (5.7 m³/h) | 36 m (118 ft) | 7 m (23 ft) |
| Power-5 | 0.75 | 1 | 5.2 | 102 L/min (6.1 m³/h) | 38 m (125 ft) | 7 m (23 ft) |
Specification values are taken from the 2026 catalog tables for this model.
Head against capacity as published in the catalog, with metric and imperial axes.
Q-H grid data
| Stage | 22 m³/h (367 L/min) | 19 m³/h (317 L/min) | 17 m³/h (283 L/min) | 16 m³/h (267 L/min) | 15 m³/h (250 L/min) | 14 m³/h (233 L/min) | 12 m³/h (200 L/min) | 10 m³/h (167 L/min) | 8 m³/h (133 L/min) | 7 m³/h (117 L/min) |
|---|---|---|---|---|---|---|---|---|---|---|
| Power 3 (m) | 31 m (102 ft) | 28 m (92 ft) | 27 m (89 ft) | 26 m (85 ft) | 23 m (75 ft) | 22 m (72 ft) | 20 m (66 ft) | 17 m (56 ft) | 15 m (49 ft) | 13 m (43 ft) |
| Power 5 (m) | 38 m (125 ft) | 36 m (118 ft) | 35 m (115 ft) | 33 m (108 ft) | 32 m (105 ft) | 29 m (95 ft) | 27 m (89 ft) | 25 m (82 ft) | 20 m (66 ft) | 14 m (46 ft) |
All dimensions in millimetres unless stated otherwise. Dimension references Body length, Body height, Port size, Base spacing are printed on catalog page 16.
| Model | Dimensions | Weight |
|---|---|---|
| ICP100A |
| 4.5 kg |
whole-house boosting, rooftop tank and water tower supply, and light commercial duties.
Points that apply to this model, from the catalog and the site installation guidance.
Packing information published for this model.
Packing data is taken from the catalog. Loading quantity per container is confirmed per order.
Ordering information for the 2026 range.
Warranty: 2 yearsWarranty and After-sales
Voltage and market variants
This model is supplied on 170 - 260 V, 50/60 Hz for standard single-phase range for most markets. Used across the permanent magnet inverter and multistage ranges.
Other voltages are arranged on request. See the selection guide for the full list.
PDF files are generated from the catalog data published on this page.
Datasheet
Model, key specifications, power stage data and packing details generated from the catalog data on this page.
Performance Curve
Head and flow curve with metric and imperial axes, plus the Q-H grid data.
Dimension Data
Dimension table for each model in the range, in millimetres and inches.
Models from the same series and models that share the same boosting level.

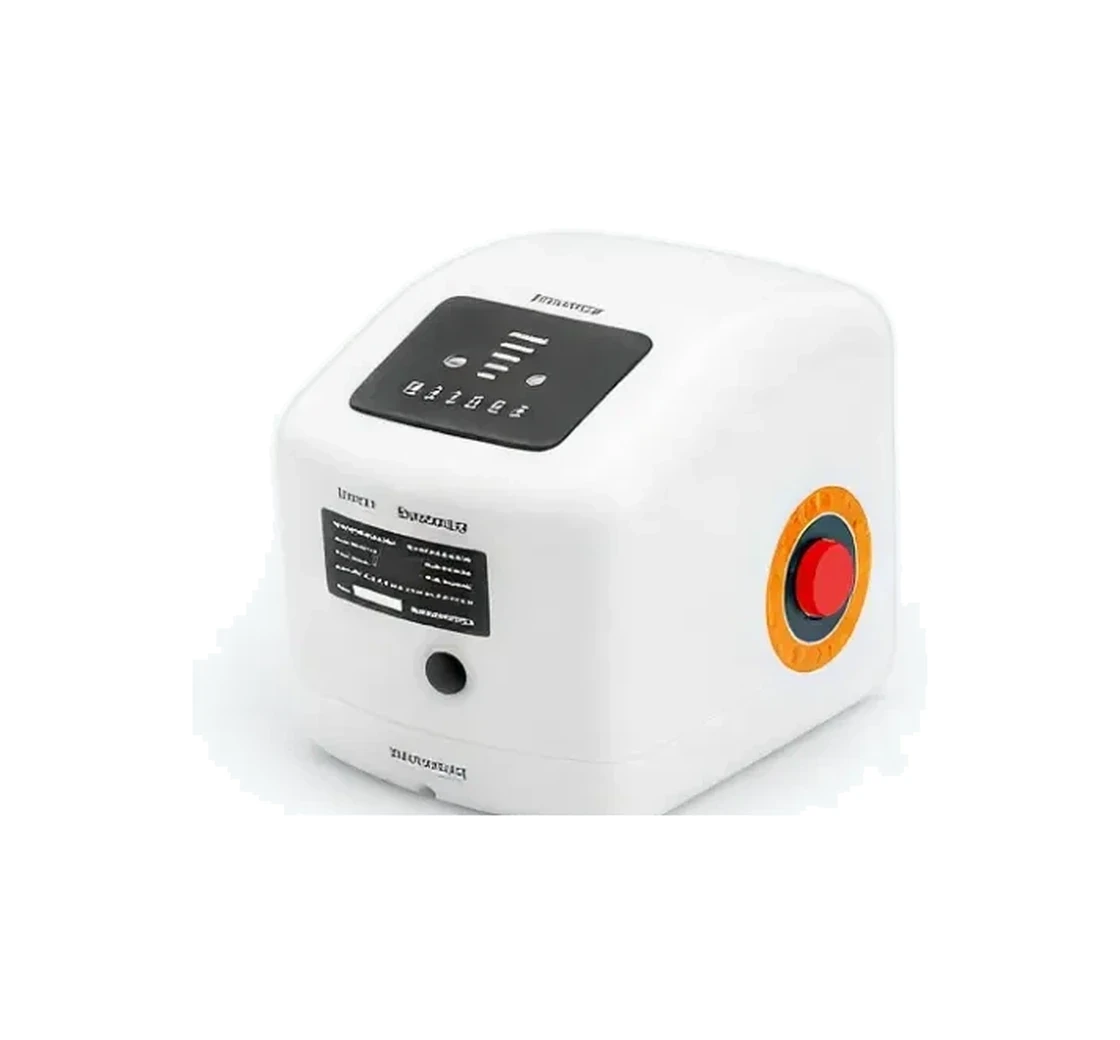

SPS-90Same boosting level · Level 1View details
SPS90-3Same boosting level · Level 1View details
SCS90P-3Same boosting level · Level 1View details

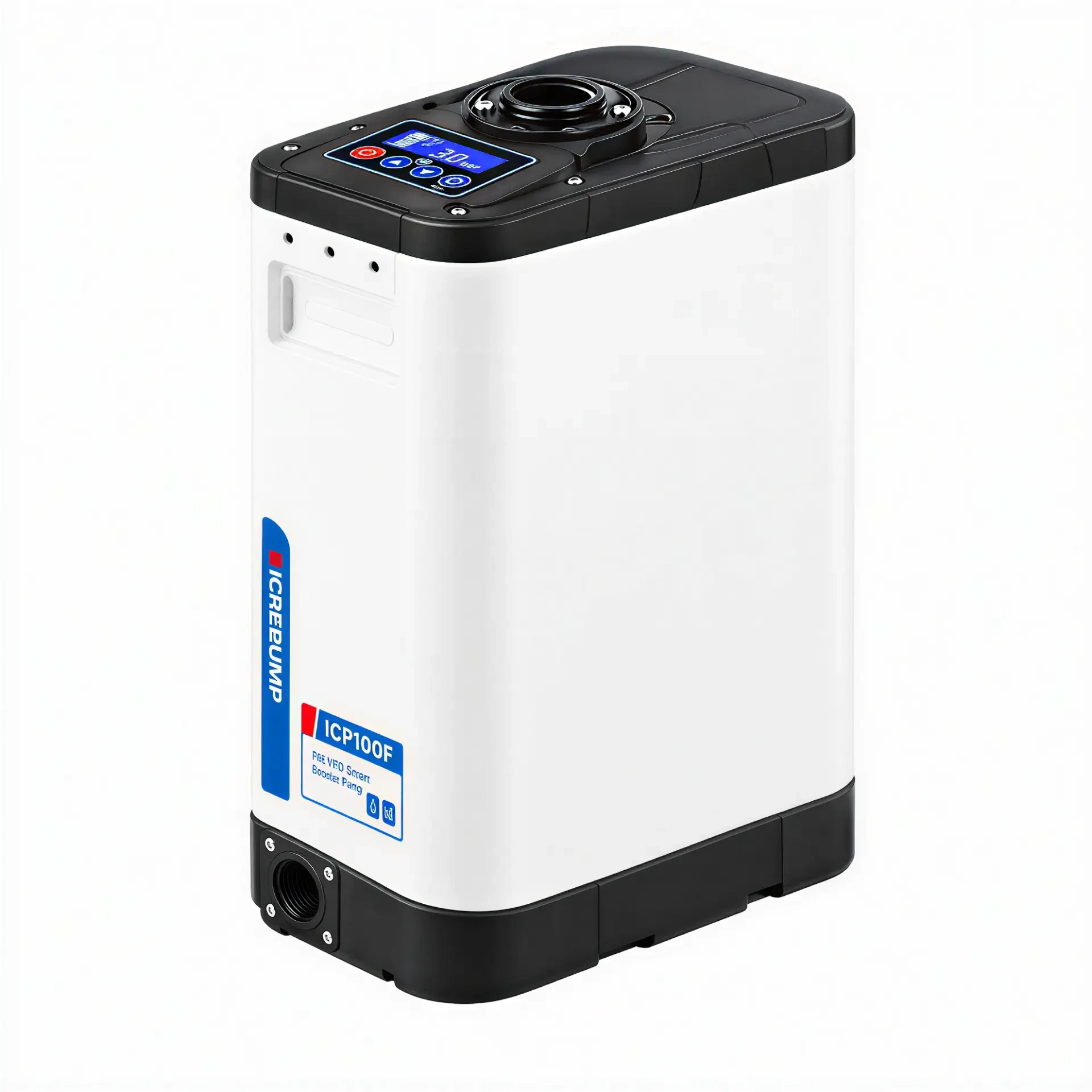

ICP100FSame boosting level · Level 1View details

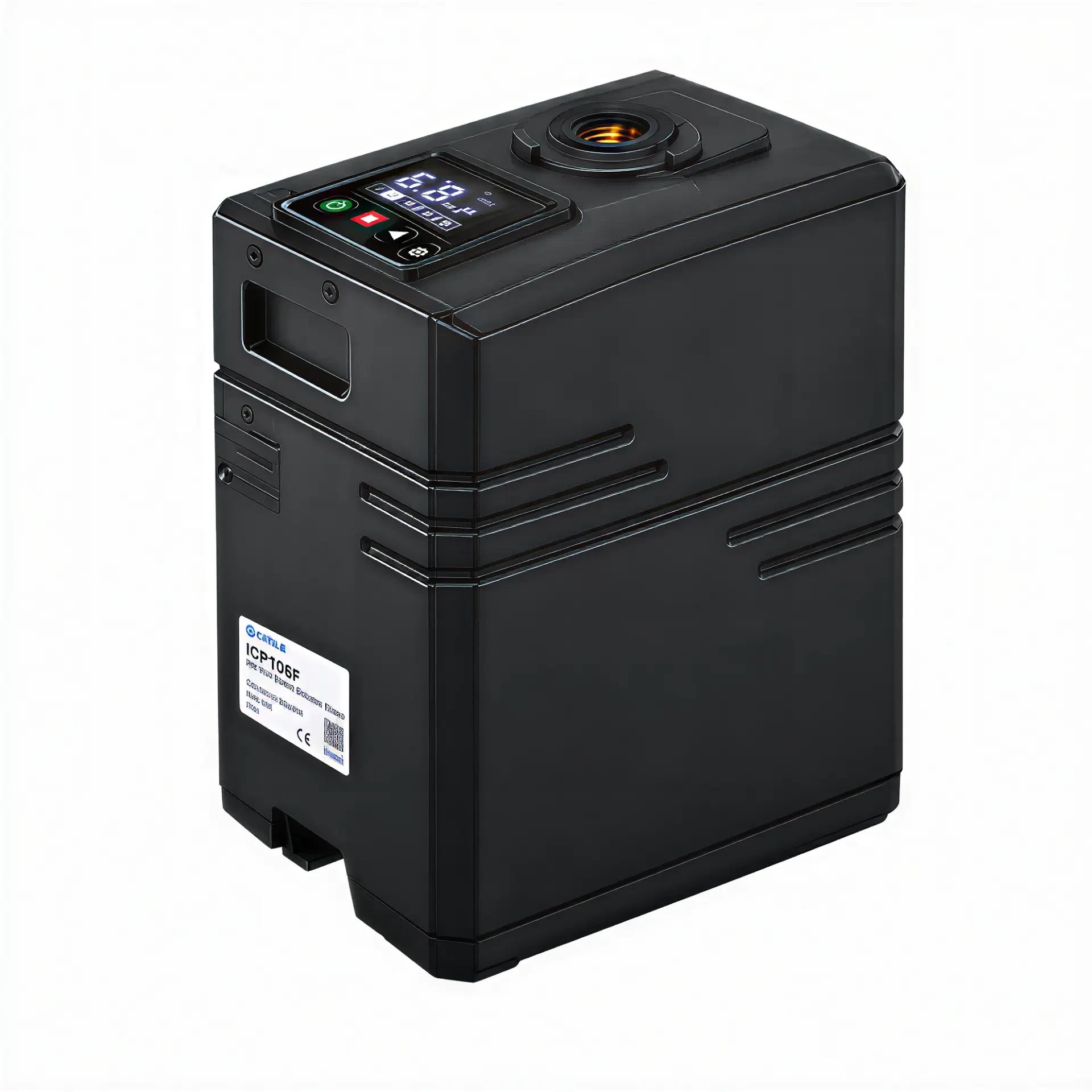

ICP106FSame series · Single-Stage PM Inverter Household Booster PumpsView details
SCS90Same series · Single-Stage PM Inverter Household Booster PumpsView detailsIn Calliope standard laboratory tests, users saved approximately 40% on electricity costs.
Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.
Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.
Working on a ICP100A project? Send the duty point, market and volume and the export team will confirm the configuration.
