ICP102-50Intelligent Centrifugal Pump

Higher flow centrifugal pump with two inch ports

Rated power: 0.35 - 1.5 kW (0.47 - 2.01 HP)
Maximum flow: 30.0 m³/h (132.1 GPM)
Maximum head: 28 m (92 ft)
Power supply: 170 - 260 V, 50/60 Hz
Catalog page: Page 17

Series modelsSPS-90 ICP100F ICP106F SCS90 ICP100AICP102-50

Request a Quote for This Model Chat on WhatsApp

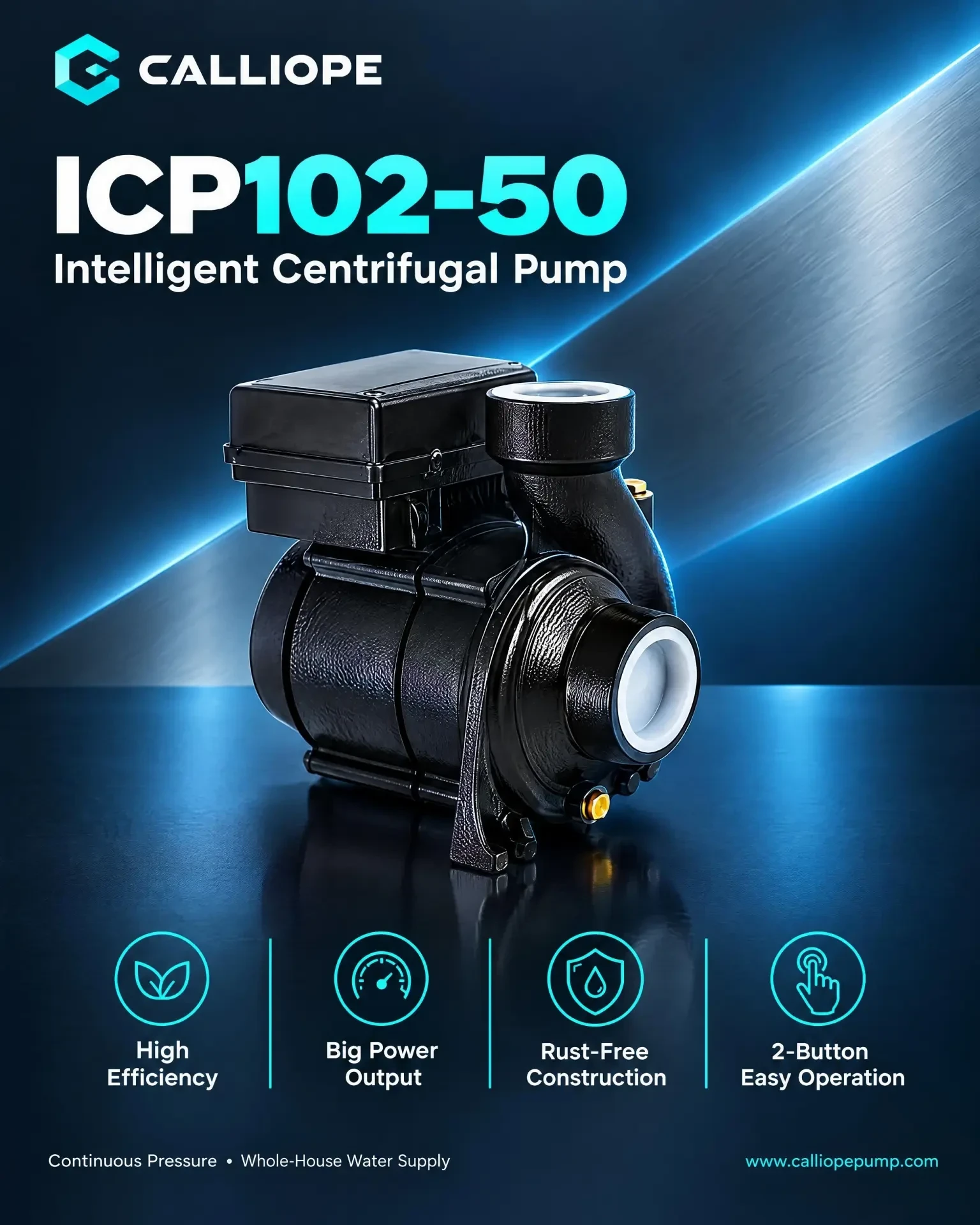

Product view

Constant PressureHigh EfficiencyCompactHigh TemperatureWide VoltageUltra-Silent

Key benefits

ICP102-50 Intelligent Centrifugal Pump · data from the 2026 catalog and the model page.

Wide voltage 170 - 260 V, 50 - 60 Hz for stable performance
Smaller, lighter, more efficient with a larger flow range
Two button operation with automatic start and stop
Intelligent fault diagnosis with alarm and fault prediction
Permanent magnet motor for lower noise and higher efficiency

The specification confirmed for an order is the one stated in the order confirmation.

Technical specifications

Same fields, units and order for every model. Fields that are not published in the catalog are omitted.

Electrical

Rated power: 0.35 - 1.5 kW (0.47 - 2.01 HP)
Power stages: 5 adjustable power stages
Power supply: 170 - 260 V, 50/60 Hz

Hydraulic

Maximum flow: 30 m³/h (132.1 GPM)
Maximum head: 28 m (92 ft)
Maximum working pressure: 10 bar (145 psi)
Inlet: 2 in (51 mm)
Outlet: 2 in (51 mm) (same as inlet)

Construction and environment

Motor type: Permanent magnet motor with integrated variable frequency drive
Liquid temperature range: 5 - 70 °C, PH 6.5 - 8.5
Ambient temperature range: 0 - 40 °C, humidity up to 85%
pH range: pH 6.5 - 8.5
Solids in the liquid: No particles or fibres larger than 0.2 mm
Pumped liquid: Thin, clean, non-solidifying, non-flammable liquid

Weights and packing

Net weight: 13 kg
Carton size: 26 × 21.5 × 26 cm
Packing: Carton with plywood tray

ICP102-50 power stage data

Every value is taken from the 2026 catalog table for this model.

Stage	Power (kW)	Power (HP)	Current (A)	Max flow (L/min)	Max head (m)
Power-1	0.35	0.48	2.5	280 L/min (16.8 m³/h)	10.5 m (34 ft)
Power-2	0.65	0.85	4.5	350 L/min (21 m³/h)	16 m (52 ft)
Power-3	0.98	1.3	6.6	400 L/min (24 m³/h)	20 m (66 ft)
Power-4	1.28	1.7	8.5	440 L/min (26.4 m³/h)	25 m (82 ft)
Power-5	1.5	2	10.5	500 L/min (30 m³/h)	28 m (92 ft)

Specification values are taken from the 2026 catalog tables for this model.

Performance curve

Head against capacity as published in the catalog, with metric and imperial axes.

Performance curve · ICP102-50Head against capacity, metric and imperial axes

Power 1Power 3Power 5

Q-H grid data

Stage	11 L/min (0.6 m³/h)	9 L/min (0.5 m³/h)	9 L/min (0.5 m³/h)	8 L/min (0.5 m³/h)	7 L/min (0.4 m³/h)	6 L/min (0.3 m³/h)
Power 3 (m)	20 m (66 ft)	18.5 m (61 ft)	17.5 m (57 ft)	16 m (52 ft)	14.5 m (48 ft)	13 m (43 ft)
Power 5 (m)	28 m (92 ft)	26.5 m (87 ft)	25 m (82 ft)	22 m (72 ft)	20 m (66 ft)	19 m (62 ft)

Dimension data

All dimensions in millimetres unless stated otherwise. Dimension references Body length, Body height, Port size, Base spacing are printed on catalog page 17.

Model	Dimensions	Weight
ICP102-50	Inlet 2 inch Outlet 2 inch a 237 mm b 41 mm d 172 mm e 141 mm f 11 mm g 82 mm h 230 mm	13 kg

Applications

whole-house boosting, rooftop tank and water tower supply, and light commercial duties.

Villa & Multi-Storey Homes
HVAC System
Rooftop Tank & Water Tower Boosting

Water use notes Match boosting level to a model

Installation notes

Points that apply to this model, from the catalog and the site installation guidance.

Liquid condition: No particles or fibres larger than 0.2 mm.

Liquid temperature range: 5 - 70 °C, PH 6.5 - 8.5
Ambient temperature range: 0 - 40 °C, humidity up to 85%
pH range: pH 6.5 - 8.5
Solids in the liquid: No particles or fibres larger than 0.2 mm
Pumped liquid: Thin, clean, non-solidifying, non-flammable liquid

Packaging and shipping data

Packing information published for this model.

Packing: Carton with plywood tray
Carton size: 26 × 21.5 × 26 cm
Net weight: 13 kg

Packing data is taken from the catalog. Loading quantity per container is confirmed per order.

Ordering information

Ordering information for the 2026 range.

MOQ and packaging: Minimum order quantity (MOQ): 50 units in kraft-paper cartons, with your brand label available. 300 units in color boxes, with the packaging layout designed entirely to your requirements.
Lead time: Approximately 35 days.
Power supply: All models are single-phase.
OEM / ODM: Supported: custom voltage and frequency builds, own brand nameplate and rating labels, and adapted carton and shipping marks.
Connection: 2 in (51 mm)

Warranty: 2 yearsWarranty and After-sales

Voltage and market variants

This model is supplied on 170 - 260 V, 50/60 Hz for standard single-phase range for most markets. Used across the permanent magnet inverter and multistage ranges.

170 - 260 V / 170 - 270 V, 50/60 Hz· Standard single-phase range for most marketsThis model
110 / 115 / 127 V, 60 Hz· Americas and other 60 Hz markets
220 / 230 / 240 V, 50 Hz· Europe, Middle East, Africa and Asia
DC 24 V· Off-grid, battery and solar assisted installations

Other voltages are arranged on request. See the selection guide for the full list.

Downloads

PDF files are generated from the catalog data published on this page.

Datasheet
Model, key specifications, power stage data and packing details generated from the catalog data on this page.
Performance Curve
Head and flow curve with metric and imperial axes, plus the Q-H grid data.
Dimension Data
Dimension table for each model in the range, in millimetres and inches.

Related models

Models from the same series and models that share the same boosting level.

In Calliope standard laboratory tests, users saved approximately 40% on electricity costs.

Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.

Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.
