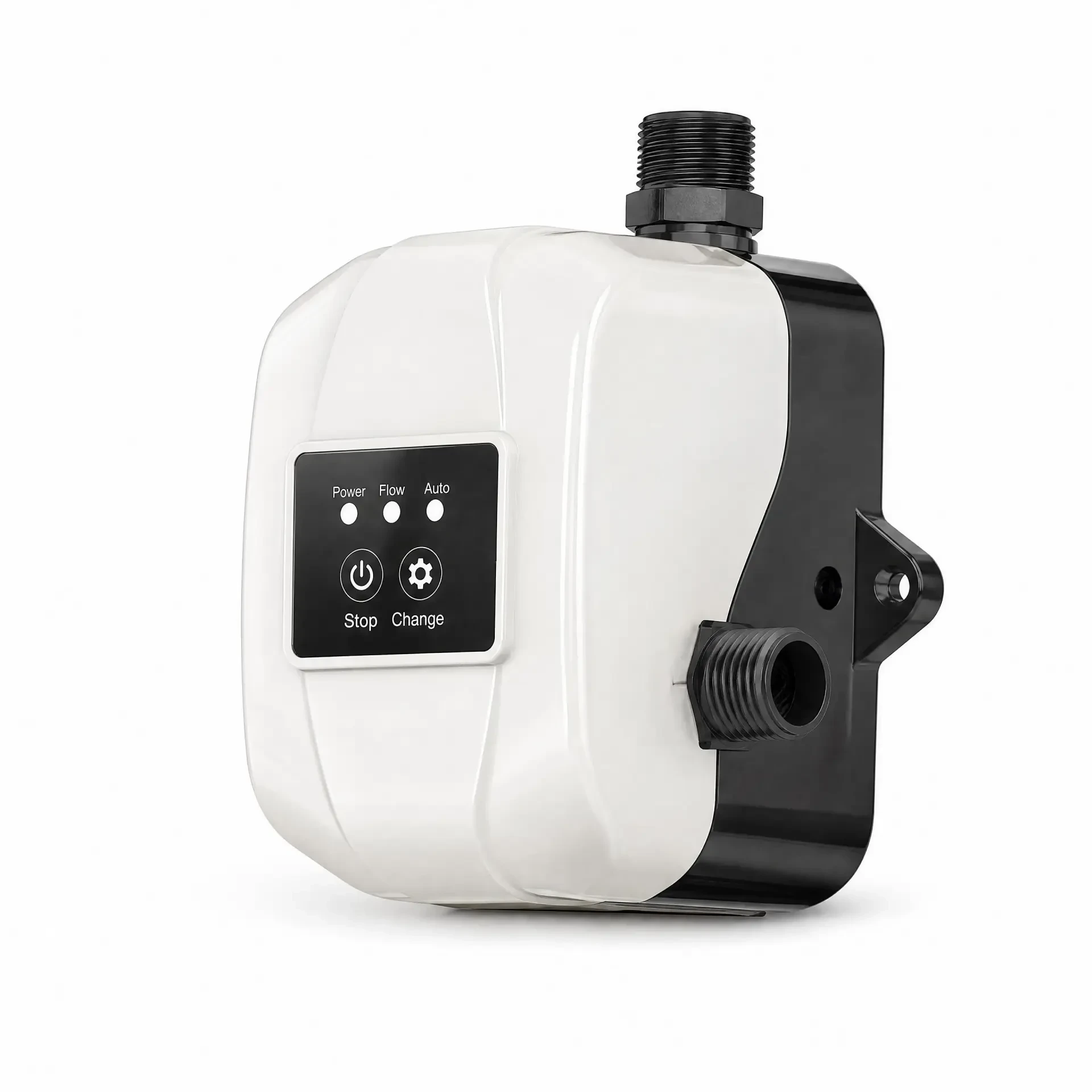

ISC2-200

Second generation DC booster with power, flow and auto indicators plus two button control.

The ISC2-200 is the second generation DC booster, adding power, flow and automatic indicator lights with stop and change buttons for clearer control. It keeps household pressure steady in compact installations while the permanent magnet DC motor runs quietly at DC 24 V with IP65 protection.

2026 catalog · DC SERIES

ISC2-200Second Generation Smart Booster Pump

Second generation smart booster with two button control

Rated power
0.2 kW (0.27 - 0.27 HP)
Maximum flow
1.5 m³/h (6.6 GPM)
Maximum head
25 m (82 ft)
Power supply
DC 24 V
Catalog page
Page 20

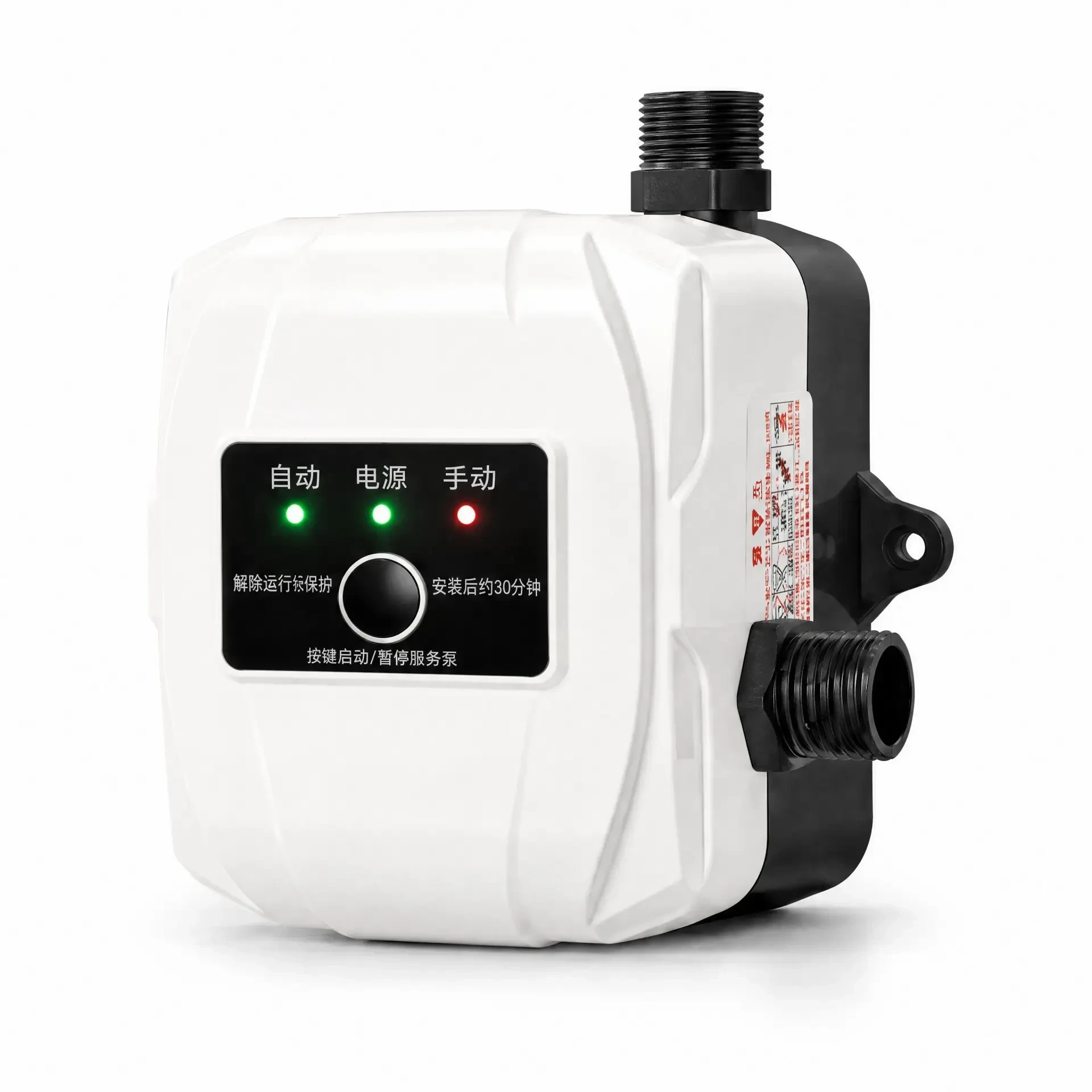

Series modelsMT24-25ISC-200ISC2-200
Request a Quote for This ModelChat on WhatsApp
Compare the full seriesSelection guide
Permanent MagnetUltra-SilentAutomaticHigh EfficiencyIP65Compact

Key benefits

ISC2-200 Second Generation Smart Booster Pump · data from the 2026 catalog and the model page.

  • Permanent magnet DC motor
  • Ultra quiet operation
  • Auto start and stop with clear status indicators
  • Energy saving operation
  • IP65 protection and compact body

The specification confirmed for an order is the one stated in the order confirmation.

Technical specifications

Same fields, units and order for every model. Fields that are not published in the catalog are omitted.

Electrical

Rated power
0.2 kW (0.27 HP) · catalog rating 200 W
Power supply
DC 24 V
Protection class
IP65
Insulation class
Class H

Hydraulic

Maximum flow
1.5 m³/h (6.6 GPM)
Maximum head
25 m (82 ft)
Inlet
15 mm (0.59 in)
Outlet
15 mm (0.59 in) (same as inlet)

Construction and environment

Pump body and wetted parts
Reinforced Nylon
Motor type
Permanent magnet DC brushless motor
Liquid temperature range
0 - 65 °C
Pumped liquid
Clean water

Weights and packing

Net weight
1 kg
Carton size
5.5 × 8 × 13 cm
Packing
Carton

Specification values are taken from the 2026 catalog tables for this model.

Performance curve

Head against capacity as published in the catalog, with metric and imperial axes.

Performance curve · ISC2-200Head against capacity, metric and imperial axes
0 m (0 ft)6.3 m (21 ft)12.5 m (41 ft)18.8 m (62 ft)25 m (82 ft)0 m³/h0.0 GPM6.3 m³/h27.5 GPM12.5 m³/h55.0 GPM18.8 m³/h82.6 GPM25 m³/h110.1 GPMCapacity Q (L/min and GPM)Head H (m and ft)
ISC2-200

Dimension data

All dimensions in millimetres unless stated otherwise. Dimension references Body width, Body depth, Body height are printed on catalog page 20.

ModelDimensionsWeight
ISC2-200
  • Body size (L × W × H) 5.5 × 8 × 13 cm

Applications

off-grid, battery and solar assisted pipeline boosting, and low-flow pressurisation for taps and stored water.

  • Pipeline Boosting
  • Hot Water Areas
  • Tap & Fixture Boosting
  • RV & Caravan Water Supply
Water use notesMatch boosting level to a model

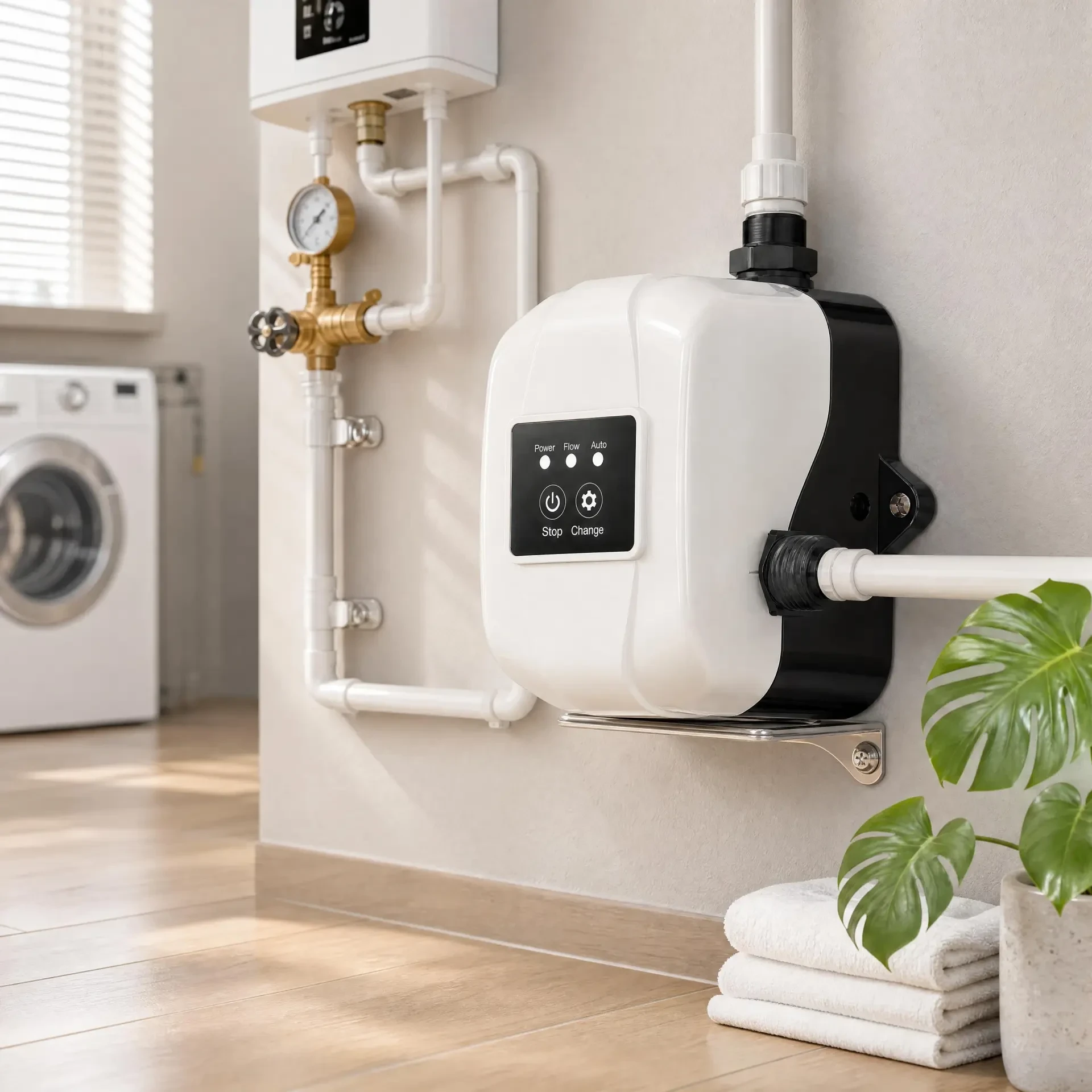

ISC2-200 smart booster pump mounted on a laundry room wall above the washing machine
Laundry room installation

Installation notes

Points that apply to this model, from the catalog and the site installation guidance.

  • Wall mounted above the washing machine
  • Two button control with LED status panel
  • Steady pressure for washers and utility sinks
  • Connection: Inlet and outlet threaded 15 mm.
Liquid temperature range
0 - 65 °C
Pumped liquid
Clean water

Packaging and shipping data

Packing information published for this model.

Packing
Carton
Carton size
5.5 × 8 × 13 cm
Net weight
1 kg

Packing data is taken from the catalog. Loading quantity per container is confirmed per order.

Ordering information

Ordering information for the 2026 range.

MOQ and packaging
Minimum order quantity (MOQ): 50 units in kraft-paper cartons, with your brand label available. 300 units in color boxes, with the packaging layout designed entirely to your requirements.
Lead time
Approximately 35 days.
Power supply
All models are single-phase.
OEM / ODM
Supported: custom voltage and frequency builds, own brand nameplate and rating labels, and adapted carton and shipping marks.
Control variants
Panel with 1 button for ISC-200 and MT24-25, 2 buttons for ISC2-200.
Connection
15 mm (0.59 in)

Warranty: 2 yearsWarranty and After-sales

Voltage and market variants

This model is supplied on DC 24 V for off-grid, battery and solar assisted installations. Pipeline booster range: MT24-25, ISC-200 and ISC2-200.

  • 170 - 260 V / 170 - 270 V, 50/60 Hz· Standard single-phase range for most markets
  • 110 / 115 / 127 V, 60 Hz· Americas and other 60 Hz markets
  • 220 / 230 / 240 V, 50 Hz· Europe, Middle East, Africa and Asia
  • DC 24 V· Off-grid, battery and solar assisted installationsThis model

Other voltages are arranged on request. See the selection guide for the full list.

Downloads

PDF files are generated from the catalog data published on this page.

  • Datasheet

    Model, key specifications, power stage data and packing details generated from the catalog data on this page.

  • Performance Curve

    Head and flow curve with metric and imperial axes, plus the Q-H grid data.

  • Dimension Data

    Dimension table for each model in the range, in millimetres and inches.

Related models

Models from the same series and models that share the same boosting level.

In Calliope standard laboratory tests, users saved approximately 40% on electricity costs.

Result of Calliope standard laboratory testing. Actual savings vary with operating conditions.

Quiet operation: typically around 45 dB, with selected models as low as 40 dB, as measured under Calliope standard laboratory conditions.

Working on a ISC2-200 project? Send the duty point, market and volume and the export team will confirm the configuration.
